Adding a Keybind

Keybinds allow you to listen to a keyboard input using user-configurable keys. To add a keybind you need to create a KeyBinding during the KeyBindingRegisterEvent event and then listen to its keycode in the KeyStateChangedEvent event. You can find a list of valid keycodes here or by doing Keyboard. in your IDE which should pop out a list of suggestions. Now let’s look at how to add a keybind.

Creating the keybind

1. Registering the keybind

First we need to register a keybind, that way it will be shown in the controls screen and saved in the options.txt file. To do that we need to listen to the KeyBindingRegisterEvent event and add our keybindings to the list accessible under the event called keyBindings

public class KeybindListener {
    // A static field holding the keybind so we can read its keycode from anywhere
    public static KeyBinding exampleKeybind;

    @EventListener
    public void registerKeybinds(KeyBindingRegisterEvent event) {
        // Initializing the keybind, the first argument is the translation key and the second is the default keycode
        exampleKeybind = new KeyBinding("key.examplemod.example_keybind", Keyboard.KEY_H);

        // Adding the keybind to the keybindings list
        event.keyBindings.add(exampleKeybind);
    }
}

2. Localizing the keybind

We have created a keybind which can now be seen and reconfigured ingame, but it doesn’t have any player visible name, to fix that we need to localize. To learn more about localizing you can head to Language File

To localize the keybind we will need to add a new entry to the lang file with the translation key we specified in the first part when initializing the keybind, in the case of the example mod that is at : resources/assets/examplemod/stationapi/lang/en_US.lang

We can use either

key.examplemod.example_keybind=Example Keybind

or

key.@.example_keybind=Example Keybind

You can see that the translation key follows the format of key.<namespace>.name and we can either specify the namespace manually or use @ and let StationAPI figure it out.

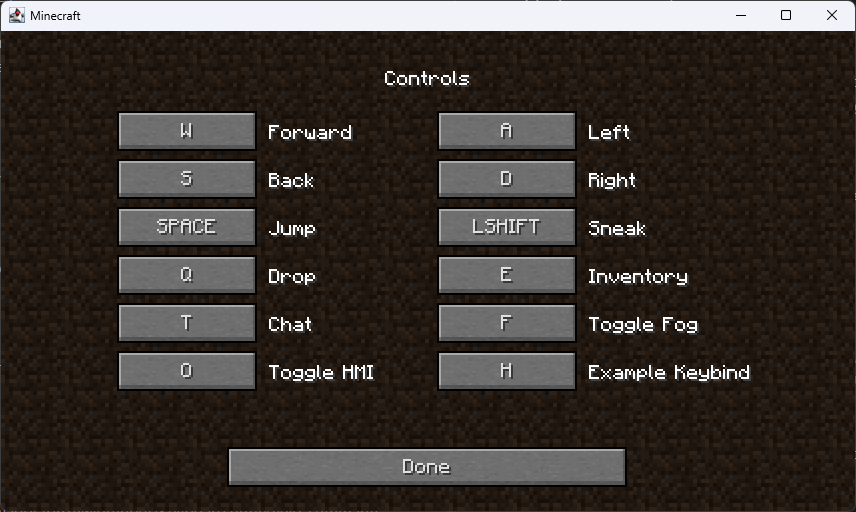

Now when we load up the game we will see that our keybind has loaded succesfully

The vanilla controls screen doesn't handle many keybinds well and with a few extra keybinds they will start getting off the screen. You can use a mod like UniTweaks which implements a scrollable controls screen similar to the one implemented in Release 1.7



Listening to the Keybind

You can listen to the keybind pretty much anywhere, but you have to keep in mind that some methods might not be called often enough to catch a keypress and that you need to make sure you are only listening to keybinds on the client.

The recommended way to listen to keybinds is thru the KeyStateChangedEvent, the event itself also provides us with the environment field which can be either IN_GUI or IN_GAME, you can probably infer what those mean.

Let’s make a simple key listener:

@EventListener
public void handle(KeyStateChangedEvent event) {
    // Only do action if the key was pressed, not when its released
    if (Keyboard.getEventKeyState()) {
        // Check if our keybind has been triggered
        if (Keyboard.isKeyDown(KeybindListener.exampleKeybind.code)) {
            // Perform different actions based on if we are ingame or in gui
            if (event.environment == Environment.IN_GAME) {
                ExampleMod.LOGGER.info("INGAME");
            } else if (event.environment == Environment.IN_GUI) {
                ExampleMod.LOGGER.info("INGUI");
            }
        }
    }
}

Make sure to only register theses events (both registration and listening) on the stationapi:event_bus_client event bus, so it only runs on client

Now when we press the key we assigned we will receive output in the console based on if we are in game or in gui (like inventory, main menu, pause menu etc.)

[13:53:10] [Minecraft main thread/INFO] (examplemod|Mod) INGAME
[13:53:11] [Minecraft main thread/INFO] (examplemod|Mod) INGAME
[13:53:14] [Minecraft main thread/INFO] (examplemod|Mod) INGUI

Let’s also look at the 2 methods from Keyboard we used:
Keyboard.getEventKeyState - This method will return true if the key was pressed and false if it was released, we use this to only trigger action once on a keypress
Keyboard.isKeyDown(int keycode) - This method will tell us if the key with the supplied keycode has been pressed



Accessing more context

Since we listen for the keypresses in a dedicated listener, the amount of stuff we can access is quite limited. This can however be solved using the FabricLoader as outlined here. This will net us access to pretty much everything including the World and Player.

// Check if we are on the correct "side"
if(FabricLoader.getInstance().getEnvironmentType() == EnvType.CLIENT){
    // Get the game instance and cast it to Minecraft
    Minecraft client = (Minecraft)FabricLoader.getInstance().getGameInstance();

    // Now we can access pretty much anything from the Minecraft main class
    World world = client.world;
    PlayerEntity player = client.player;
}



External Resources

LWJGL Keycodes

Examples:
UniTweaks Keybinding Listener Key Press Listener
StationAPI Test Mod Keybinding Listener Key Press Listener
